How does it work?

Skid Mark Analysis is based on Two Dimensional Transient Finite Difference computation with the determination of view factors at surface nodes.

What are the input data for Skid Mark Software?

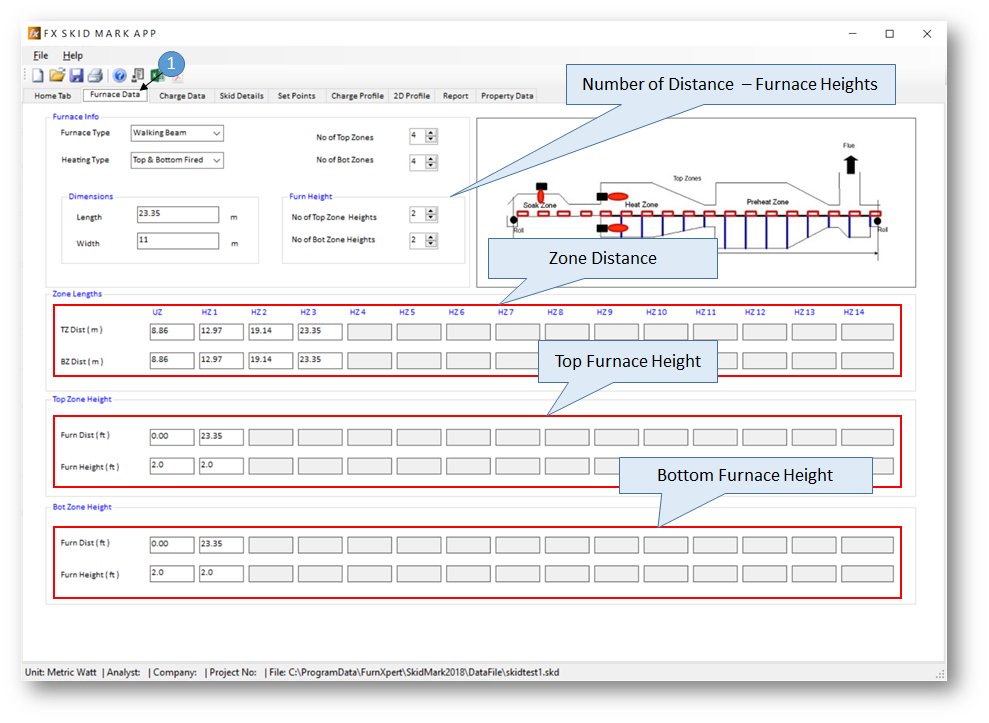

  • Furnace Info: Furnace Type, No. of Zones. Zone Lengths
  • Part Information: Shape, Length, Width, Thickness, Gaps

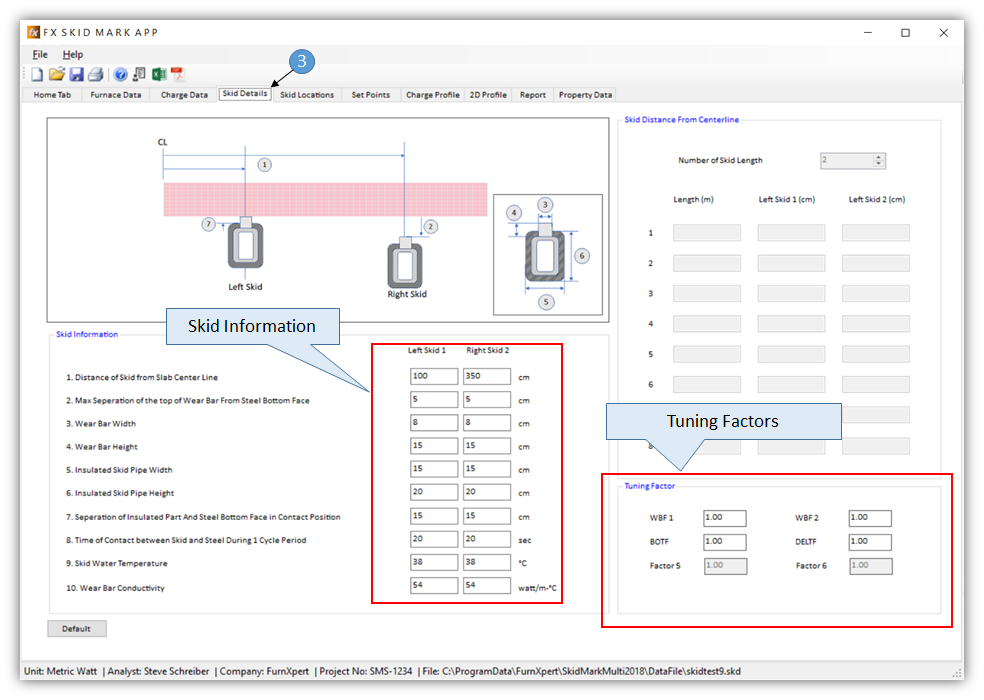

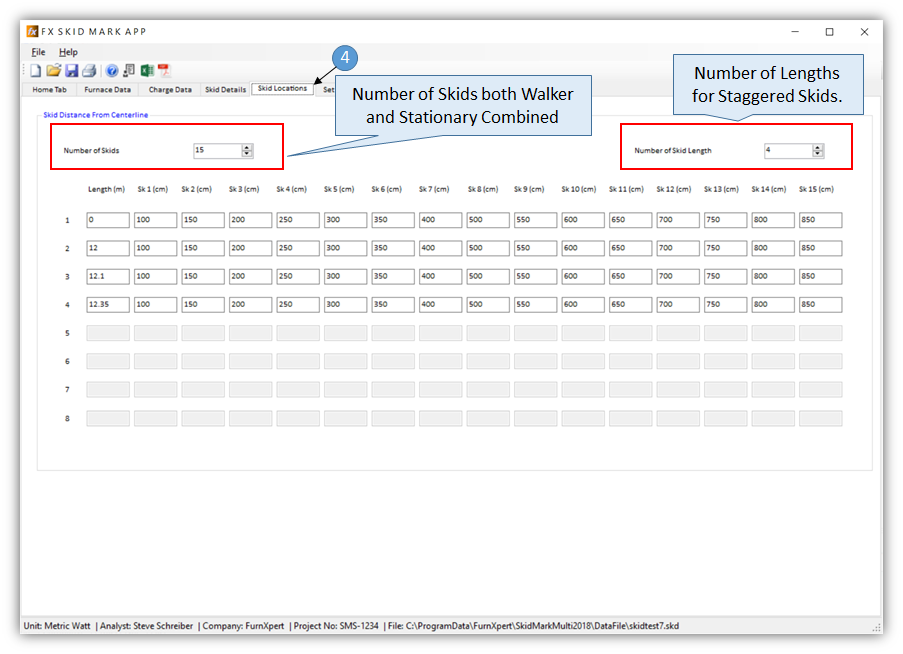

  • Skid Data: Number of Skids, Dimensions, Separation, Material
  • Boundary Condition, Zone Setpoints and Furnace Temp Profile
Results from the Skid Mark Software
  • Temperature Output in a matrix form at desired time interval

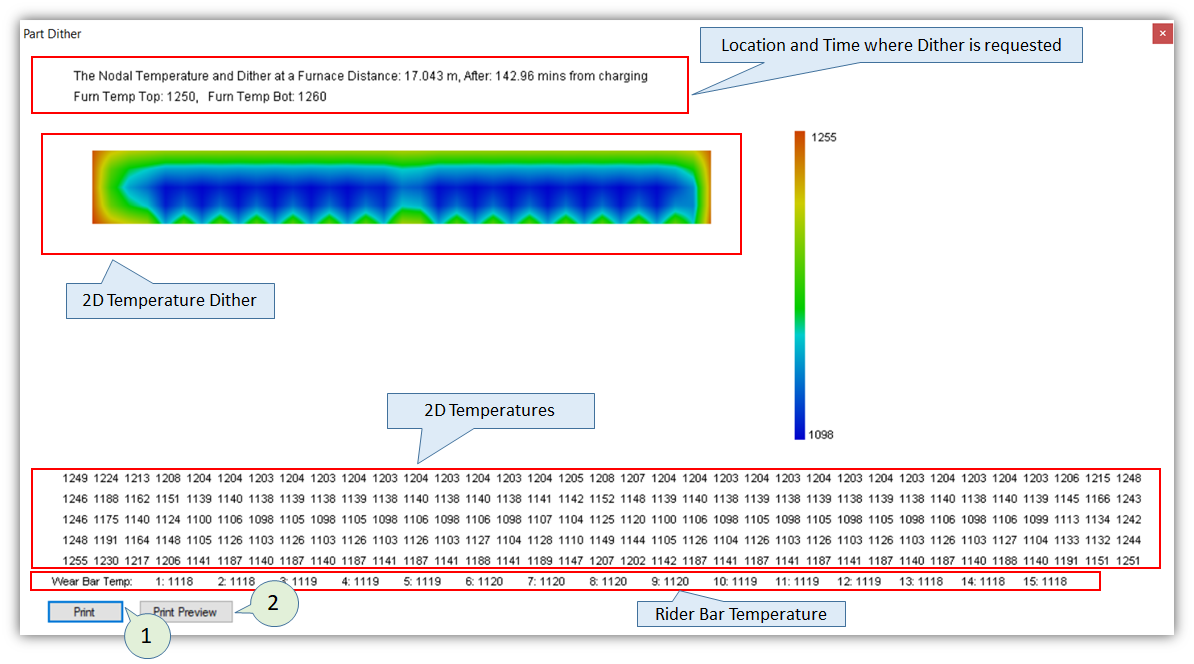

  • Temperature Dither Output of the slab

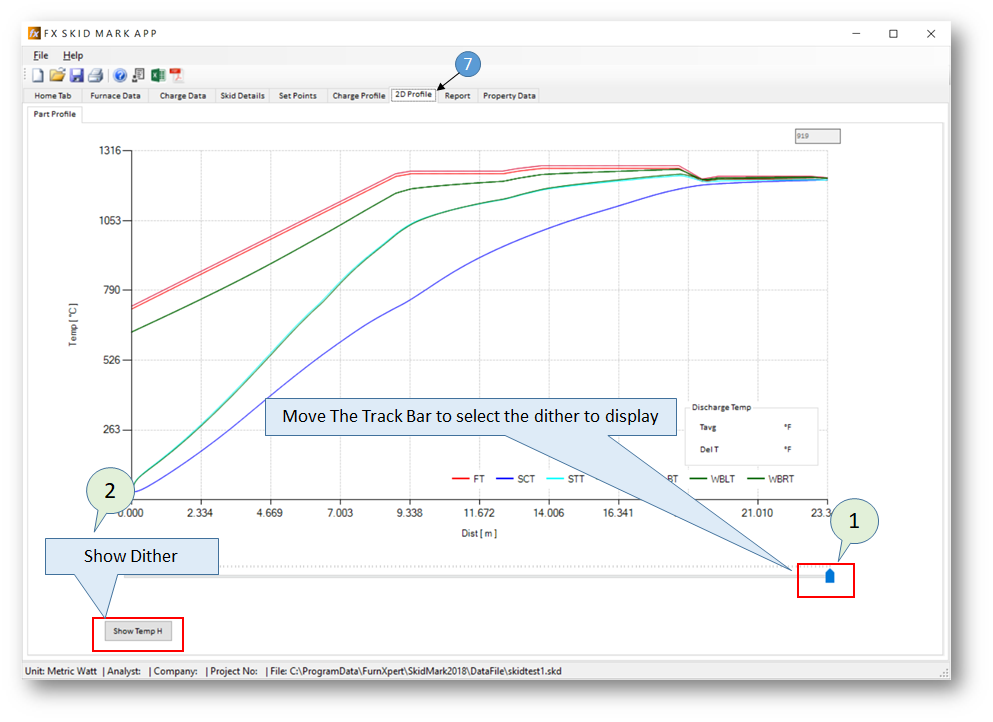

  • Time (Distance) -Temperature plot of selected nodes

For an overview please check Skid Mark Software

View Screens - To view the screens please click on the screen shot below. It will walk you through all the function screens. If you mouse over the enlarged screen the forward abd backward scroll signs will appear.
