Modules & Features

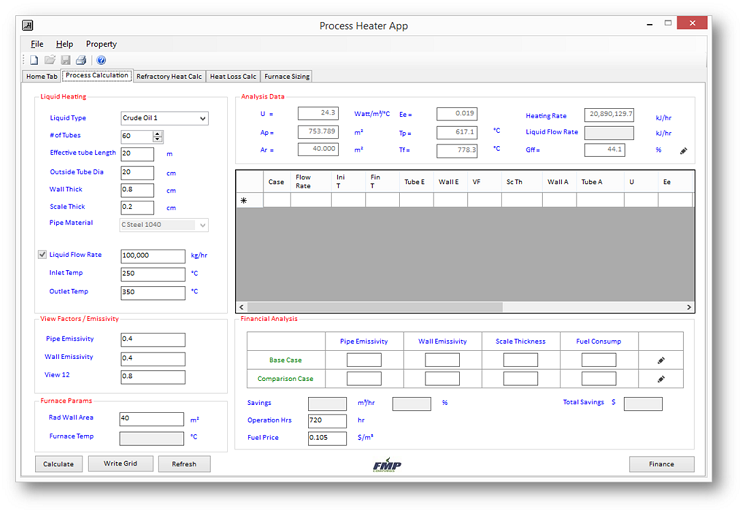

Process Inputs:
- Process Liquid to be heated
- Number of tubes in the process heater, effective tube length, outside tube diameter and wall thickness
- Liquid Flow Rate
- Liquid Inlet and Outlet Temperature
- Inlet Air Temperature
- Pipe Wall Area Participating in Radiation

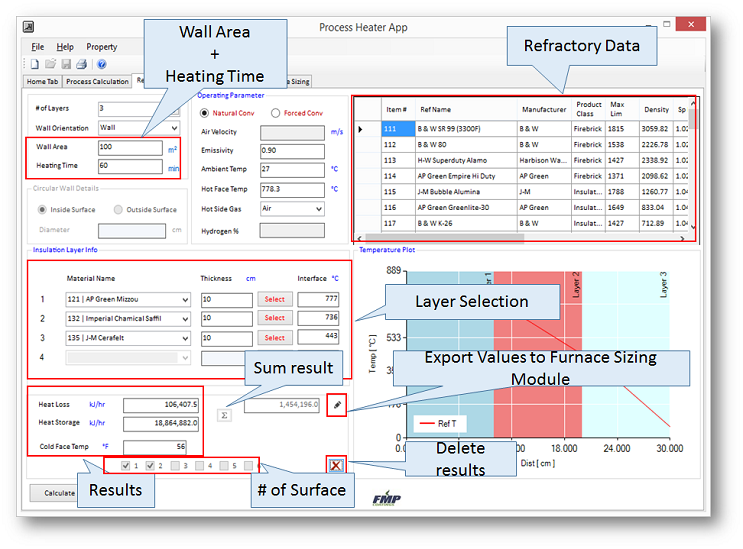

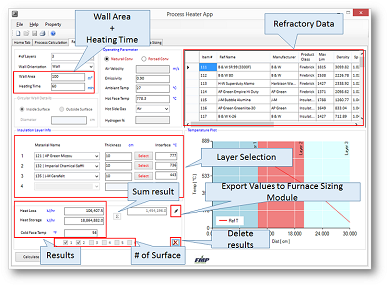

Refractory Inputs:
- Number of Layers of Refractories

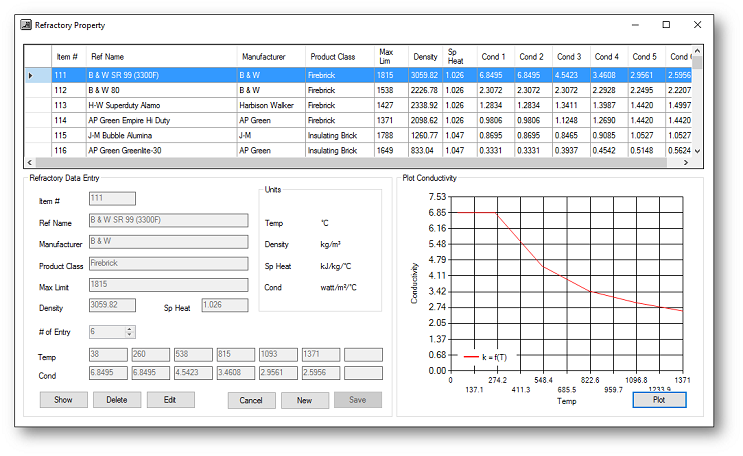

- Refractory Materials from list of materials in the database
- Refractory Thickness
- Refractory Wall Area in Radiation Section
Fuel Inputs:

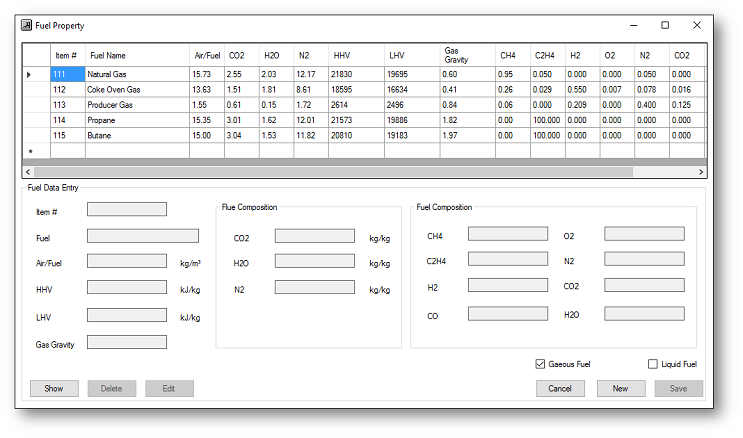

- Fuel type from the list of fuels in the database
- Excess Air
- Combustion Air Temperature
- Fuel Air Temperature

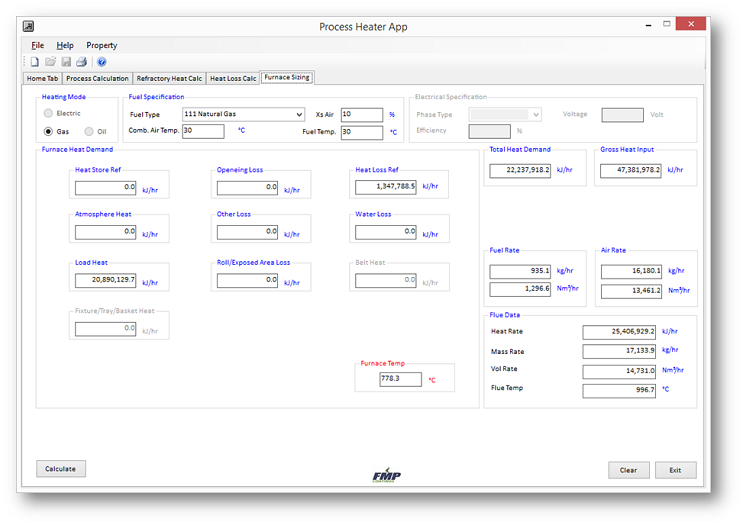

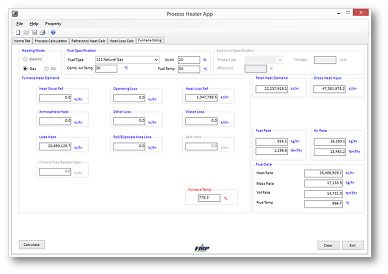

Combustion Analysis
- Calculates Total Heat Demand and Gross Heat Input
- Calculates Fuel and Air Rate
- Flues Data, For Example, Heat Rate, Mass/Volume Rate and Flue Tempearture
- Calculate Electric Power and Total Current for Electrical Heating

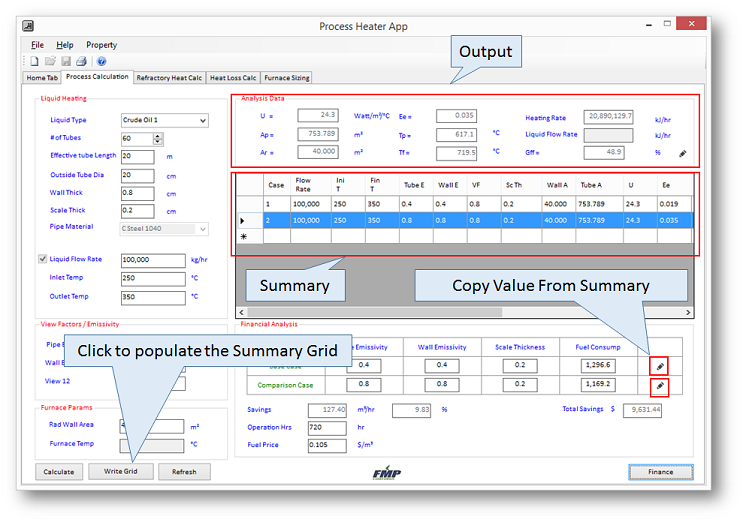

Output:
- Heat Transfer Coefficient U
- Wall Temperature
- Tube Temperature
Results:
- Refractory Heat Loss
- Heat to raise the Process Liquid from Inlet to Outlet Temperature
- Flue Loss and Flue Gas Temperature
- Total Heat demand and Gross Heat Input
- Fuel and Air Flow Rate and Furnace Efficiency
- Fuel Cost for Running the Furnace
Reports:
- Results from each calculation can be displayed in a report format and can be directly printed or converted to PDF format.
- Excel Spread Sheet: The results can also be exported to an excel spread sheet.
- Operating System: The new software is developed with dot net technology and runs seamless on XP, VISTA, Windows 7 , Windows 8, 8.1. 10
